Fransgard Three-Point Logging Winches
Three-point logging winches play a crucial role in forestry operations by enabling the hauling of logs and other heavy loads. Fransgard three-point winches are a top choice for both professional and hobby foresters for a variety of reasons. The pulley height, single-rope engagement system and easy clutch adjustments make maintainence quick and simple. These features set Fransgard winches apart with straightforward and user-friendly operation, as well as simple part replacement and maintenance.Β The optimal height and weight of these winches also help to optimize your tractor's fuel efficiency, horsepower, and traction.

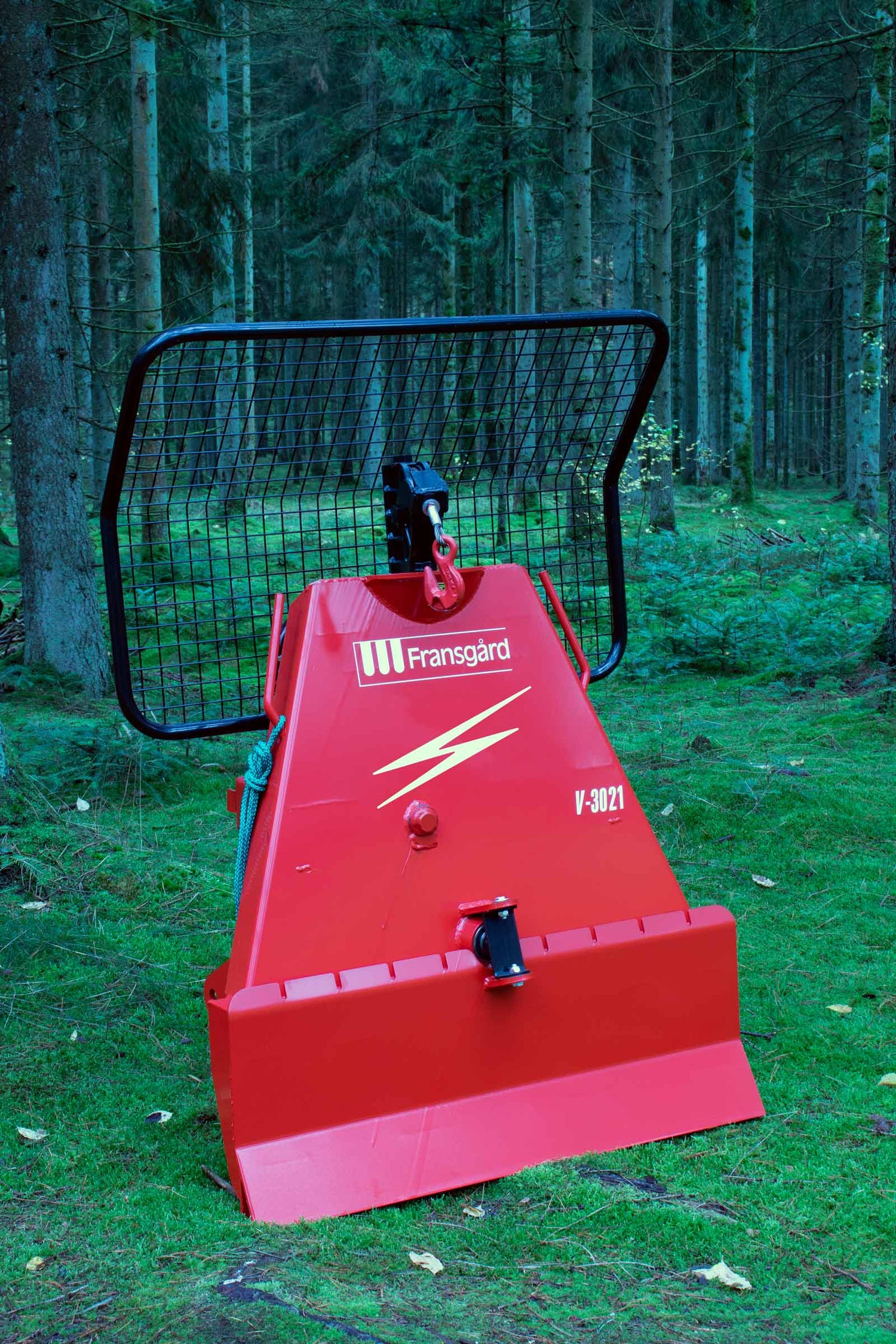

Fransgard V3021 Forestry Winch
The V3021 is the smallest logging winch in the Fransgard lineup.
- 3-Pt: Cat 1
- Cable: 133' x 5/16"
- Butt Plate HxW:Β 15" x 40"
- Total Height: 57
- Eng. HP Min-Max: 25-45
- Pulling Capacity: 6600
- Weight: 385

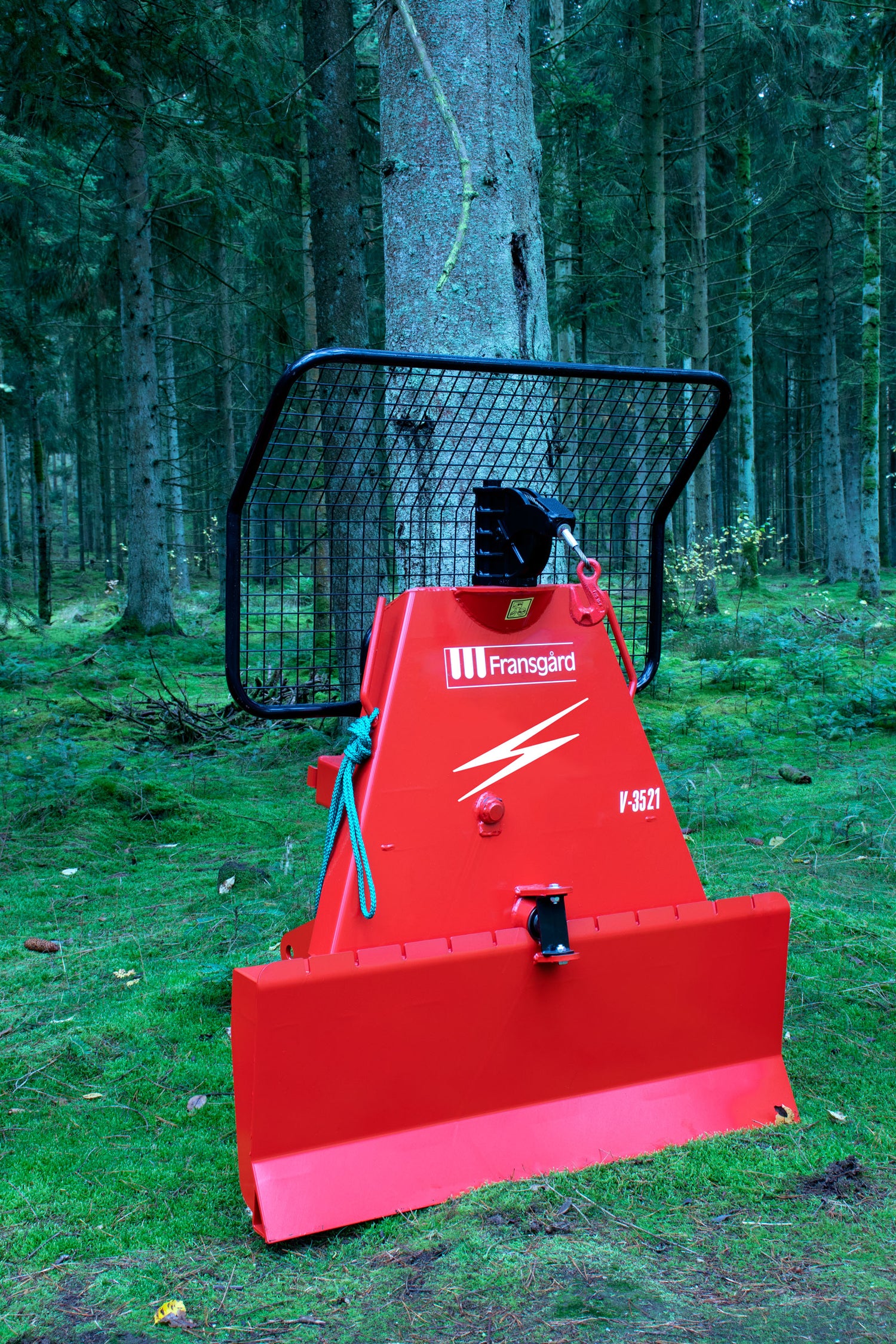

Fransgard V3521 Forestry Winch
The V3521 is a best-selling option for maximum power and efficiency.
- 3-Pt: Cat 1
- Cable: 133β x 5/16β
- Butt Plate HxW: 19" x 50"
- Total Height: 61"
- Eng. HP Min-Max: 25 - 45
- Pulling Capacity: 7275
- Weight: 408

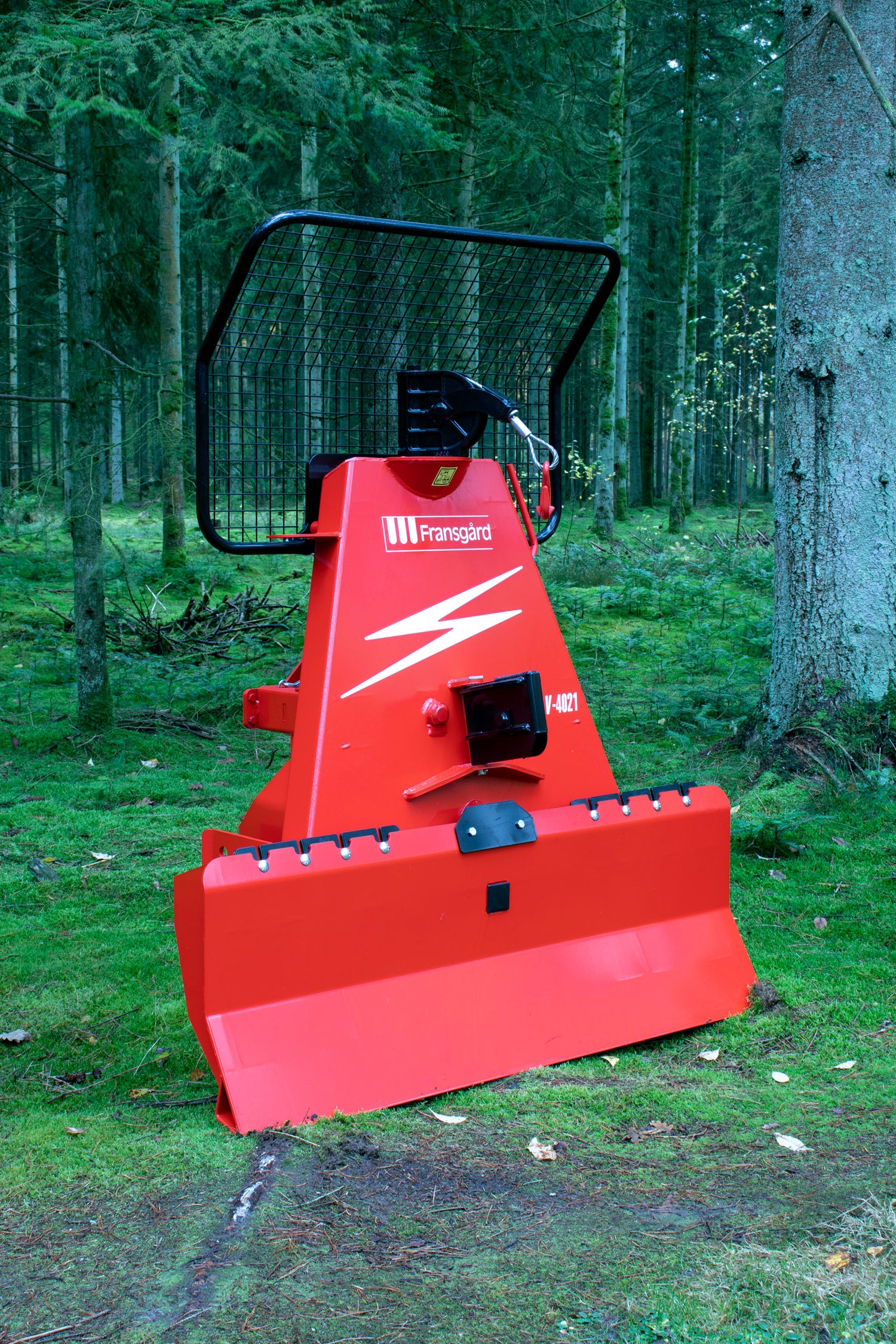

Fransgard V4021 Forestry Winch
The V4021 is a great option for operations requiring a larger, more heavy-duty winch.
- 3-Pt: Cat 1 & 2
- Cable: 167β x 3/8β
- Butt Plate HxW: Β 22" x 59"
- Total Height: 69"
- Eng. HP Min-Max: 35 - 65
- Pulling Capacity: 8800
- Weight: 657

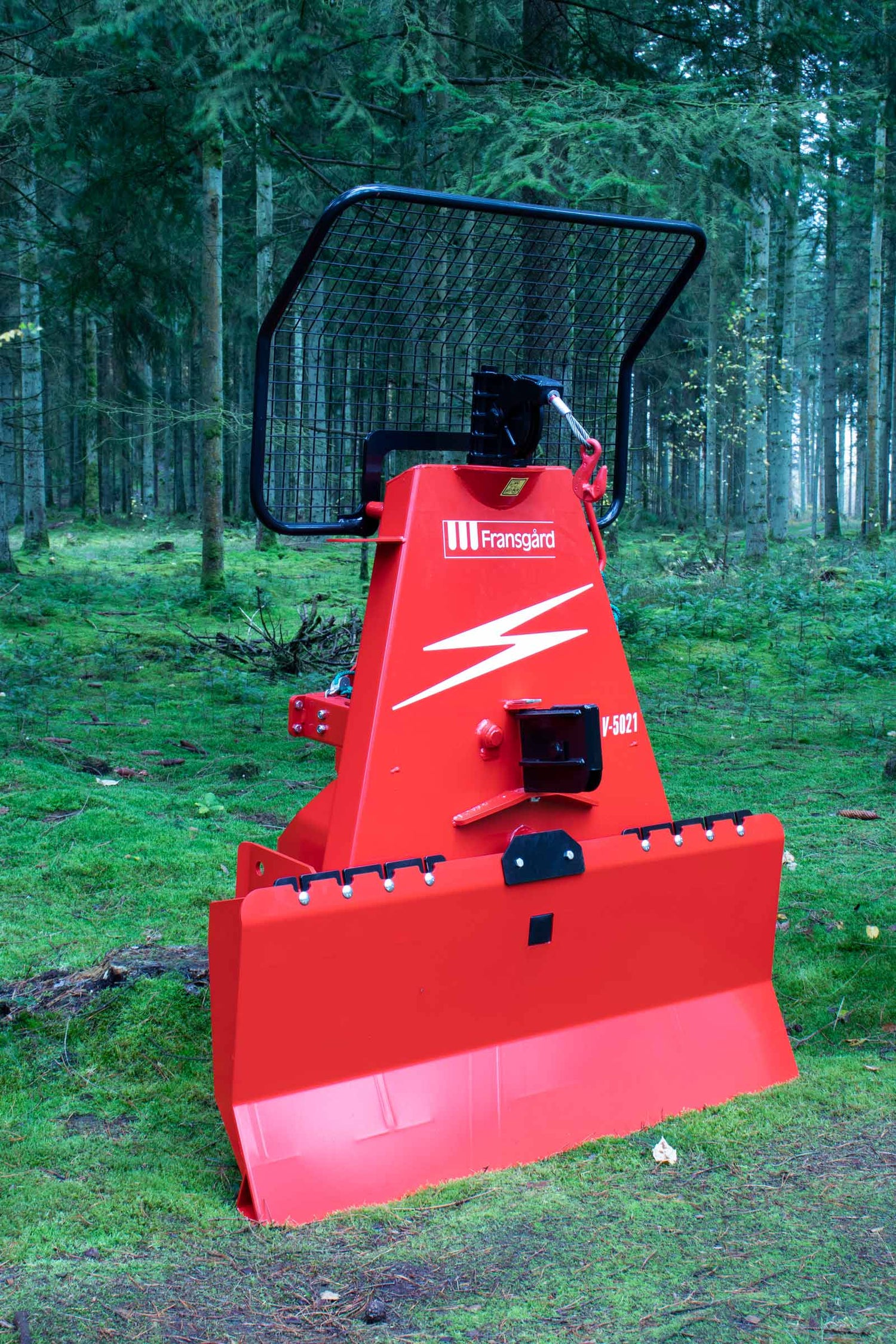

Fransgard V5021 Forestry Winch
The V5021 is a great machine for a variety of forestry operations, and can haul the heaviest loads with ease.
- 3-Pt: Cat 1 & 2
- Cable: 167β x 3/8β
- Butt Plate HxW: 26" x 59"
- Total Height: Β 73"
- Eng. HP Min-Max: 40 - 70
- Pulling Capacity: 11000
- Weight: 687

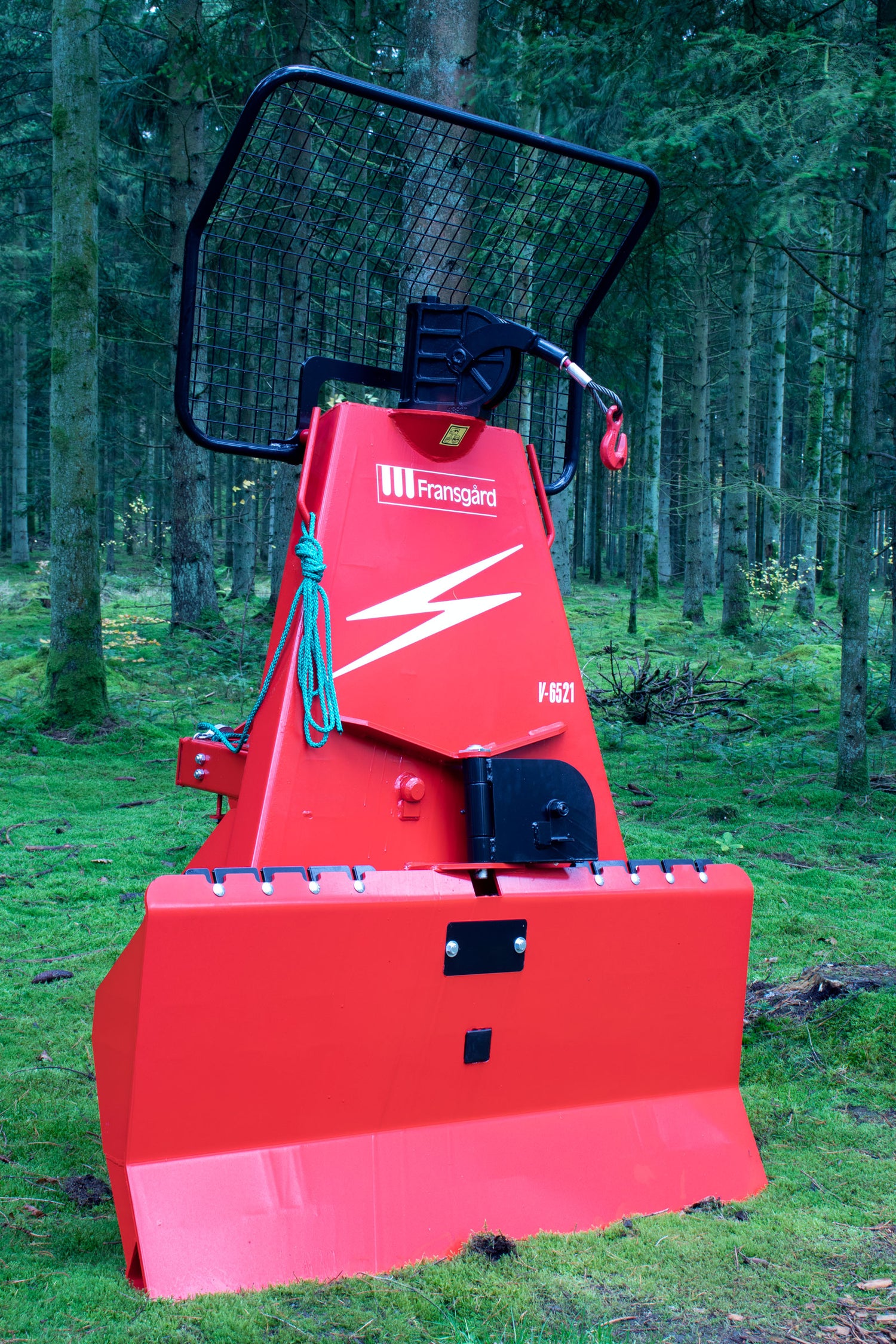

Fransgard V6521 Forestry Winch
The V6521 is the largest logging winch in the Fransgard lineup.
- 3-Pt: Cat 1 & 2
- Cable: 167β x 7/16β
- Butt Plate HxW: 28" x 59"
- Total Height: 61"
- Eng. HP Min-Max: 60 - 110
- Pulling Capacity: 14,300
- Weight: 972
Forestry Grapples
-
Fransgard SK-950
Forestry Grapple with maximum grapple opening of 44".
-
Fransgard SK-1400
Forestry Grapple with maximum grapple opening of 57".
